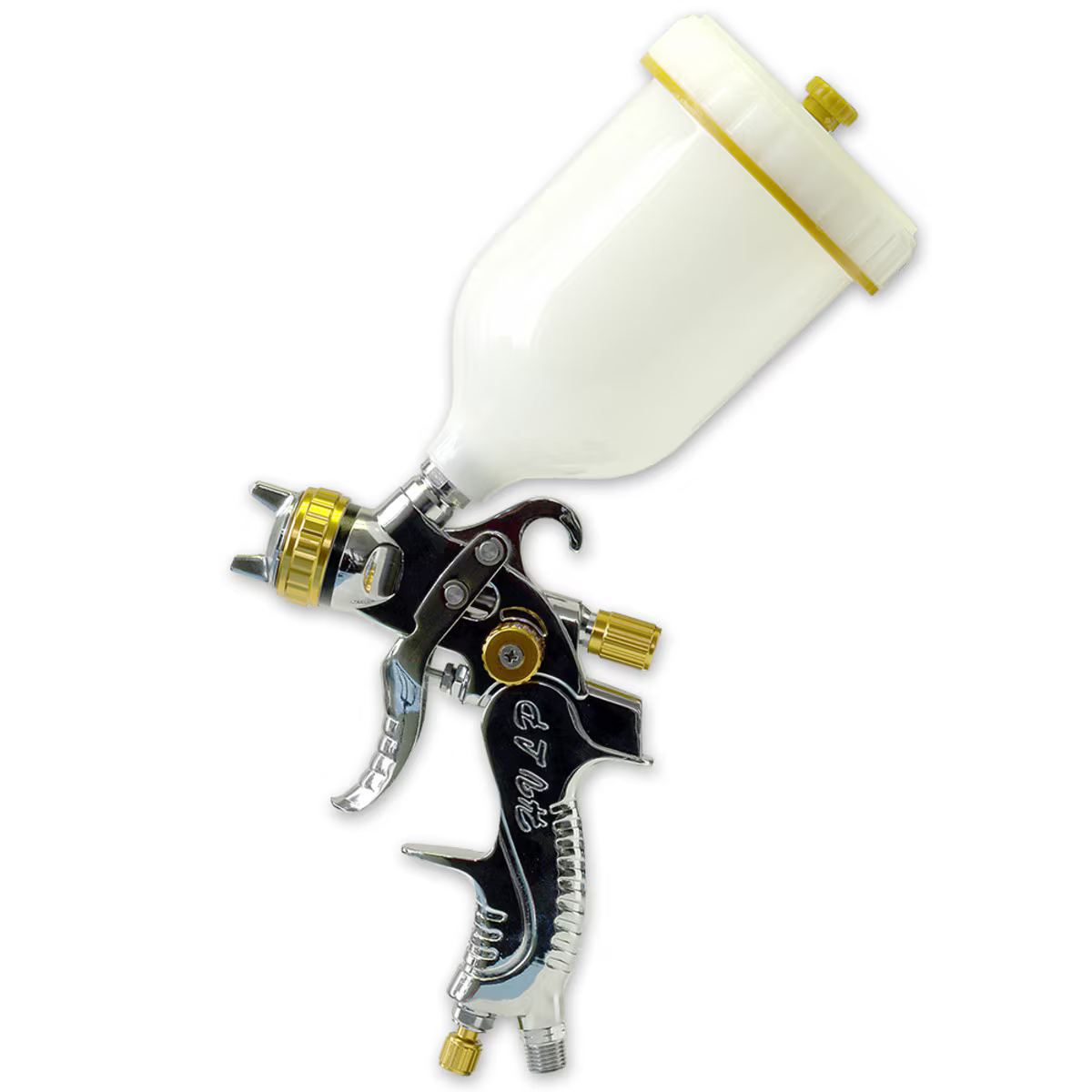

Paasche - LXG - Gravity Fed HVLP Spray Gun

The LXG-20 HVLP gravity feed spray gun, light weight, easy to control, perfect for large and small jobs.

Shipping and Returns

Shipping calculated at checkout. Rates vary by weight, size, and destination.

This product typically ships same day if ordered by 11am Eastern. You will receive a notification when your order has shipped. FedEx is our shipping partner for ground and express shipments.

You can return your unopened product up to 30 days after receiving your order. We're not able to accept returns on custom tinted products.

Material Safety and Tech Data Sheets

Learn more

Product Specification

LXG manual spray guns are for use from low to medium pressure with light to heavy fluids. They will cover a range of materials to include enamels, latex, and lacquers etc. These models require 6 to 10 C.F.M. at 30 to 50 lbs. air pressure depending on spray head selected and material being sprayed. Tip and needle are made of stainless steel and can handle water or solvent based materials.

SETUP

Blow out all airline hoses before connecting to the spray gun to remove foreign particles.
Connect air hose to air inlet fitting.
Connect fluid cup or fluid hose to fluid inlet.
Tighten all hose connections securely.
Adjust air pressure to required amount at the regulator.
Adjust fluid volume by turning the fluid control knob.
The fan pattern is controlled by turning the fan control knob.
Test spray on some cardboard or newspaper for final adjustment before spraying your project.

CLEAN UP

After each use spray your paint solvent through the spray gun and wipe off the outside with clean solvent. Never leave the entire spray gun immersed in solvent. Dirty air caps and tips should be cleaned by soaking in solvent and then blown clean with air. Personal safety equipment should be used at all times.
